Rentals

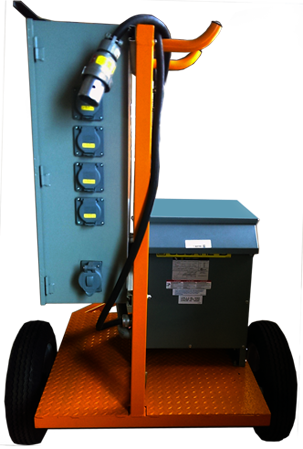

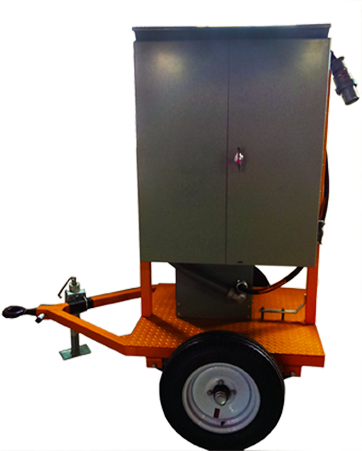

VISTAM VDP100
100 Amp Distribution Cart
SPECIFICATIONS:
- 1 Transformer 30kVA 3Ph. 480V to 120/208V Type NEMA 3R (air cooled with rain shield)
- 1 Panelboard 100A 240V 3P-4W - (1) 100A Main Breaker 3P 240V + (12) 20A GFCI
Breakers 1P 120/208V + (1) 50A GFCI Breaker 2P 240V
- 12 L5-20R (Twist-Lock) Receptacles - 20A 125V 2P-3W
- 1 CS6369 (Twist-Lock) Receptacle - 50A, 125/250V 3P-4W
- 12 Ft. #2 4/c Power Cord 100A 600V
- 12 Ft. 1/C #4 SOOW Green Ground Cable
- Steel Frame with (2) 21" wheels and Tow Hub
